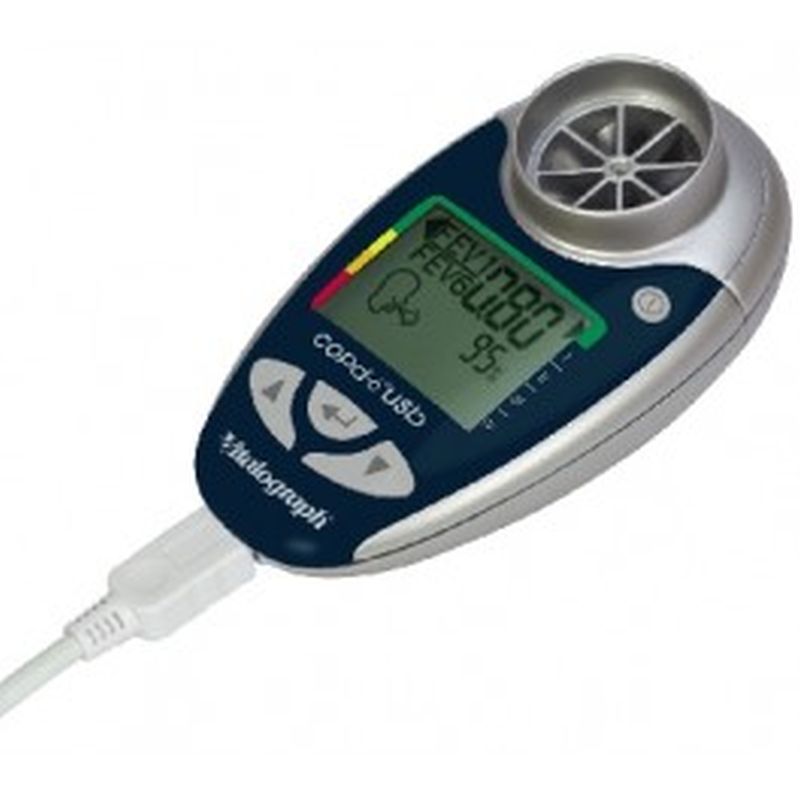

Vitalograph Respiratory Monitor copd-6 USB

% of
£188.40 £157.00

The copd-6 usb identifies those at risk of COPD at the pre-symptomatic stage to allow early medical intervention and facilitate better clinical outcomes. It combines all the features of the COPD-6 with the ability to link to your PC to generate electronic and hard copy reports through Vitalograph Reports software. Session data and device ID may be transmitted to Vitalograph Reports or an API developers' kit is available for providers of e-Diary, home hub and telemedicine solutions.

This pioneering device screens out those whose FEV1 is normal, and who therefore do not have COPD, without the risk of false COPD negatives.

By linking to your PC the copd-6 usb produces electronic & hard copy reports.

  • Predicted values, 3 test results, best test, % predicted and lung age automatically tabulated;
  • Obstructive index, COPD (GOLD) Classification indicator;
  • BMI calculated;
  • Blow quality indicator;
  • Interpretation of results;
  • Automatically sends data after each blow;
  • Can also send session data;
  • Time and date of each session;
  • Indicates blow quality and number of blows in each session;

Reports Include:

  • Single page record for screening or monitoring;
  • Various report options;
  • Optional subject ID and name fields (weight field optional);
  • Ability to add comments to the report;
  • Age, height, gender, device ID, time/date fields automatically populated;
  • Can automatically name the PDF file;
  • Ability to add comments to the report;


  • FEV1, FEV6 and FEV1/FEV6;
  • Predicted values for the above;
  • Age, gender and height;
  • Device ID automatically transmitted with the data;

Technical Specification

Brand - Vitalograph
Detailed Technical Information -
Product: Vitalograph copd-6 USB
Model Number 4000
Part Number 40200, 40450, 40350, 40850
Description Vitalograph copd-6, Vitalograph copd-6 usb, Vitalograph copd-6 bluetooth, Vitalograph copd-6 serial
Parameters Displayed FEV1/FEV6/ratio and % predicted
Quality of Blow Indicator Yes
Obstructive Index Mild, Moderate, Severe (FEV1% predicted)
COPD Classification Normal (not COPD); Stage I, II, III & IV (FEV1% predicted)
Lung Age Indicator Yes
Flow Impedance Better than 0.15 kPa/L/s at 14 L/s
Operating Temperature Range 17 - 37°C
Sensor Stator rotor
Accuracy Better than +/- 3%
Range 0 - 9.99 L BTPS
Size 113 x 63 x 48mm
Weight 55g net
Display Custom Liquid Crystal Display
Power AAA batteries
Performance Standards ISO 26782:2009 ISO 23747:2007 ATS/ERS 2005
Safety Standards IEC 60601-1:2005
Medical Safety Standard Medical Devices 93/42/EEC (as amended)
Designed and manufactured to following QA/GMP standards ISO 13485:2003 FDA 21CFR820
