Vitalograph micro Spirometer
Micro Spirometer

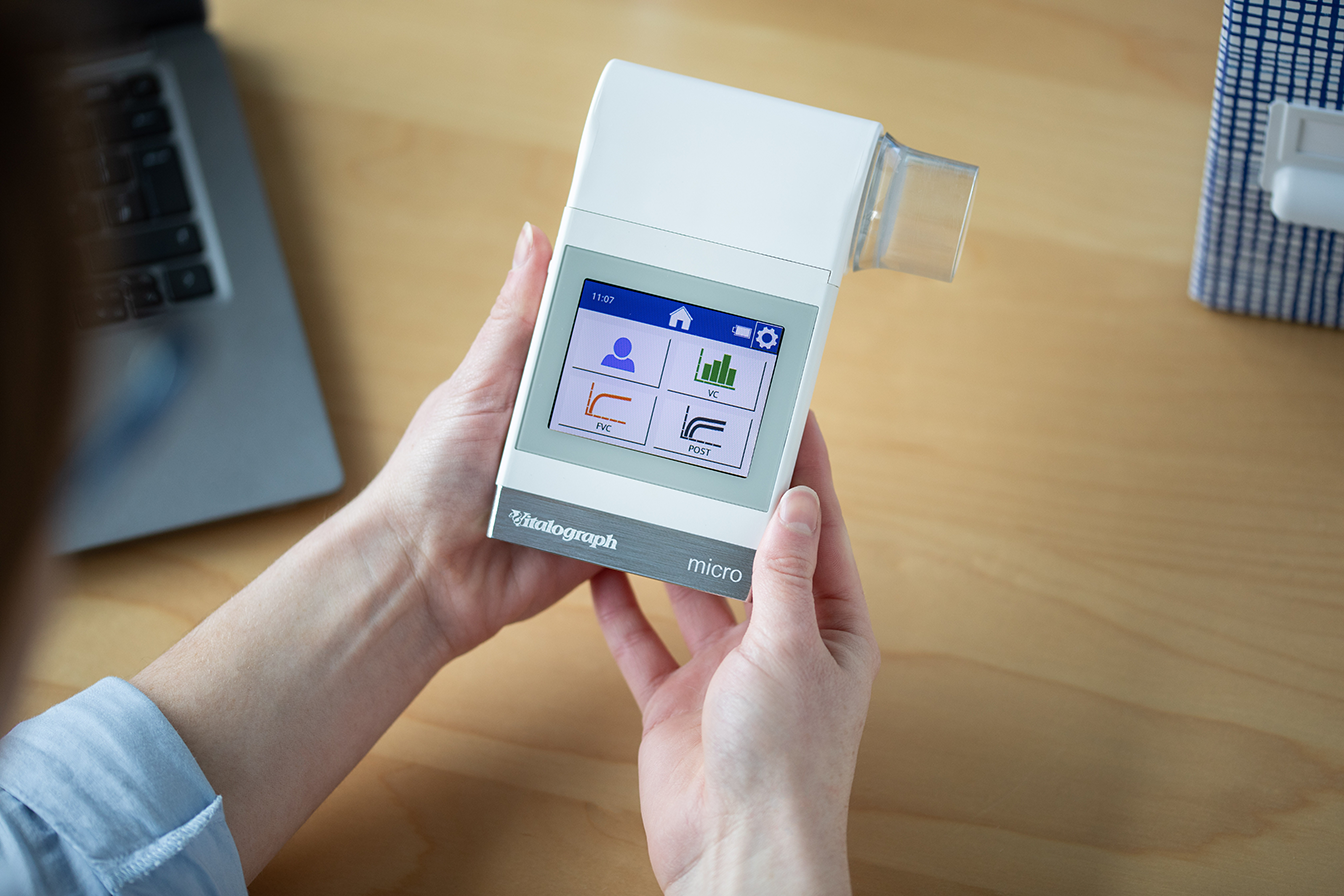

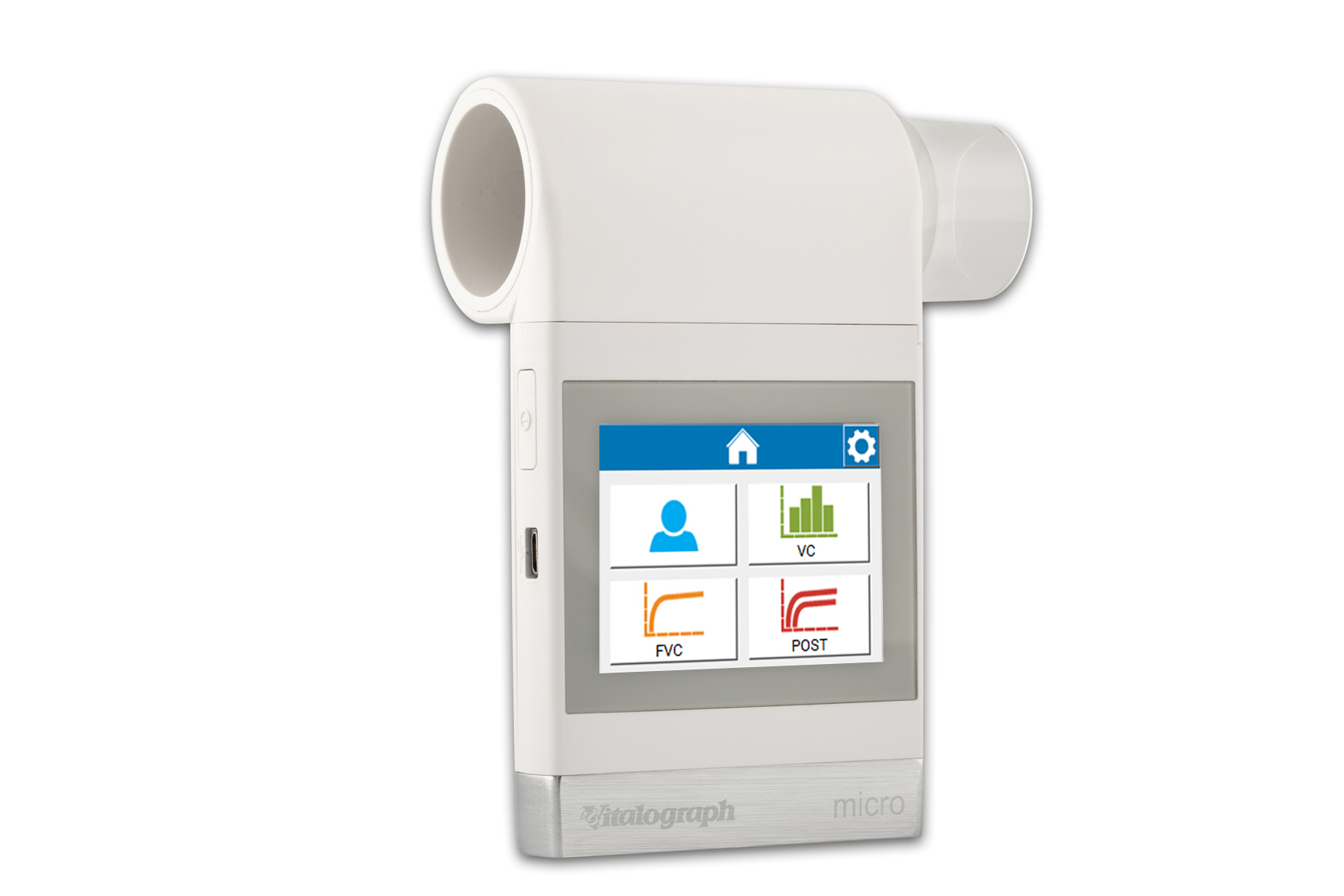

The microTM is a handheld spirometer offering full feature functionality. Powered by USB or batteries, the micro is portable and ideal for simple testing and reporting of spirometry.
Ideal for use on subjects within general healthcare and occupational health environments in either clinic based or telemedicine models. Test results and graphs are displayed on the device for instant review. Vitalograph Reports PC reporting software is included as standard.
The flowhead on the micro can be set up to work remotely using the optional Remote Flowhead Kit. Separating the flowhead from the device allows the user to view the device screen during testing.
Keeping the device clean is easy and inexpensive using Bacterial Viral Filters (BVFTM), with validated cross-contamination efficiency >99.999%.
The micro Spirometer comes with:
- Vitalograph Reports Software
- Protective carry pouch
- USB cable
Capabilities
- VC, FVC and bronchodilator responsiveness testing, 48 selectable parameters, GLI predicted equations and Z-scores.
- Low running costs. No need for expensive disposable sensors, turbines, adaptors or flow tubes.
- No sensitive moving parts (unlike turbine spirometers) making it robust and consistently highly accurate even at very low or high flow rates.
- Save time & money on cleaning by using Bacterial Viral Filters.
- Includes Reports Software for creating editable PDF reports (for printing, filing, and uploading to EMR systems).
- Touchscreen for simple and intuitive operation.
- A calibration verification routine and guidance are included on the device (as recommended by ATS/ERS, ARTP)
- Remote flowhead (purchased separately) offers more versatile testing options.
Technical Specification
Product | Vitalograph micro |
Model Number | 6300 |
Net Size | 83mm x 91mm x 32mm |
Net Weight | 0.25kg |
Flow Detection Principle | Fleisch type pneumotachograph |
Volume Accuracy | better than ±3% (or 0.05L) Max. volume 9.99L, Min. volume 0.01L |
Accuracy when in Operating Range | Flow ±10% Max. flow rate ±16 L/s Min. flow rate ±0.02 L/s |
Recommended Operating Temperature Range | 17– 37ºC (ISO26782 limits), Design limits 10 – 40ºC |
Storage Temperature | 0 – 50ºC |
Storage Relative Humidity | 10%– 95% |
Performance Standards | ATS/ERS 2019 ISO 23747:2015 & ISO 26782:2009 |
Linearity | Better than ±3% |
Battery Type | 4 x 1.5 AAA alkaline non-rechargeable |
Power Supply | 5V USB power supplied by mini USB cable |
Power | 5 Watts |
Safety Standards | EN 60601-1:2006 & A1:2013 |
Medical Safety Standard | Medical Devices Directive 2007/47/EC |
Designed and Manufactured Under | ISO 13485:2003 and 2016 FDA 21 CFR 820 CMDR SOR 98/282 JPAL |
Communications | USB |
User Interface | Touchscreen colour LCD, power button |
Volume Detection | Flow integration sampling @100Hz |
Maximum Test Duration | 90 seconds |
Maximum Displayed Volume | 10L |
Printer | Use Vitalograph Reports to print to pdf |
