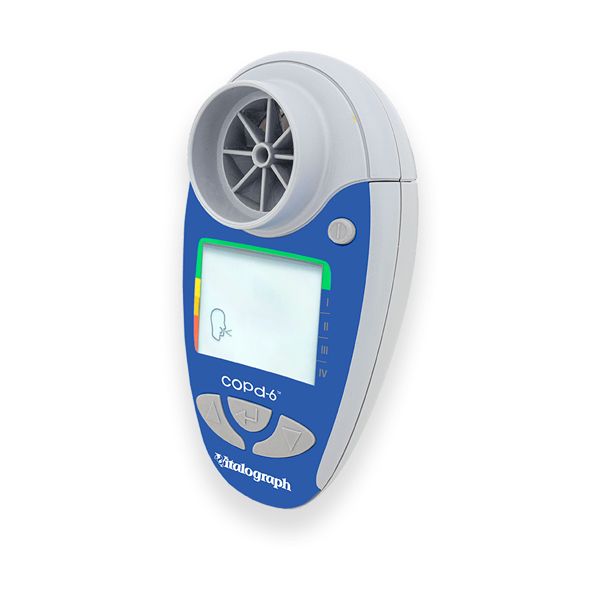

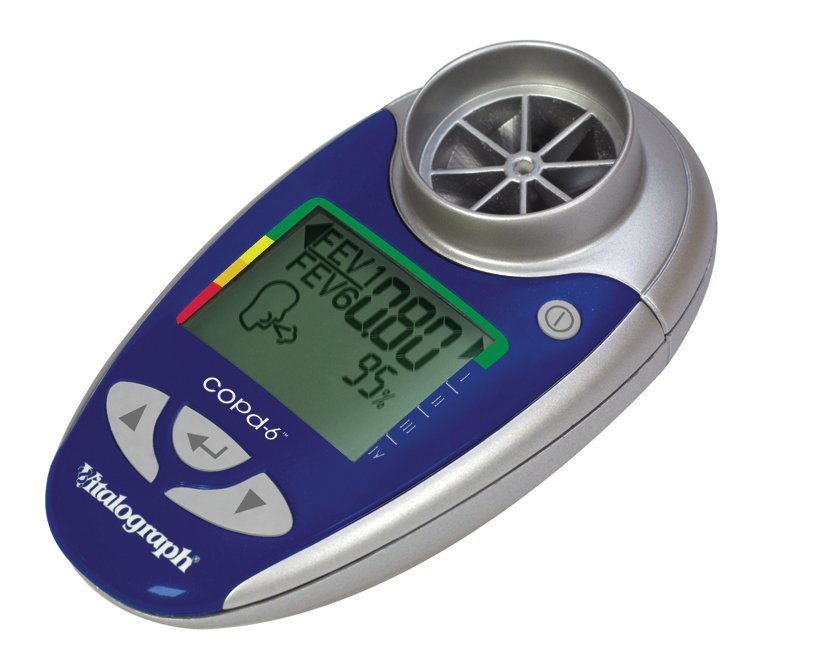

Vitalograph COPD-6 Respiratory Screener
The Vitalograph copd-6™ identifies those at risk of COPD at the pre-symptomatic stage. The device screens out those whose FEV1 is normal.
The copd-6 screener allows early medical intervention and facilitates better clinical outcomes.
- Monitors COPD patients using their ‘number’, the obstructive index which is based on a percent of predicted.
- Facilitates ‘case selection’ so that spirometry can be focused on those likely to be diagnosed with COPD.
- Screens out anyone with normal FEV1 without the risk of false COPD negatives.
- Displays FEV1, FEV6, ratio and % predicted, obstructive index, COPD classification and lung age.
- Displays the GOLD COPD classification (stage I – IV) to help recognize the need for a change in the patient’s management plan.
- Built-in quality of blow indicator.
- Large, easy-to-read display.
The COPD-6 comes with:
- Carry pouch
- Instructions for use
- 2 x AAA Batteries
Technical Specification
Brand - Vitalograph
Detailed Technical Information -
Dimensions | 109mm (length) x 63mm (width) x 42mm (height) |
---|---|
Flow Detection Principal | Stator rotor |
Accuracy | Better than ± 3% |
Back Pressure | Less than 0.15kPa/L/second @ 14L/s |
Measurement Range | 0 – 9.99 L BTPS |
Power Supply | 3V (2 x 1.5V AAA batteries) |
Battery Life | 3 months of use, 3 tests per day |
Quality Check | Slow start of test (Vext>5%) or a cough detected in the first second |
Performance Standards & Guidelines | ATS/ERS 2019, ISO 23747:2015, ISO 26782:2009 |
Auto Power Down Time | 2 minutes |
