In stock In Stock

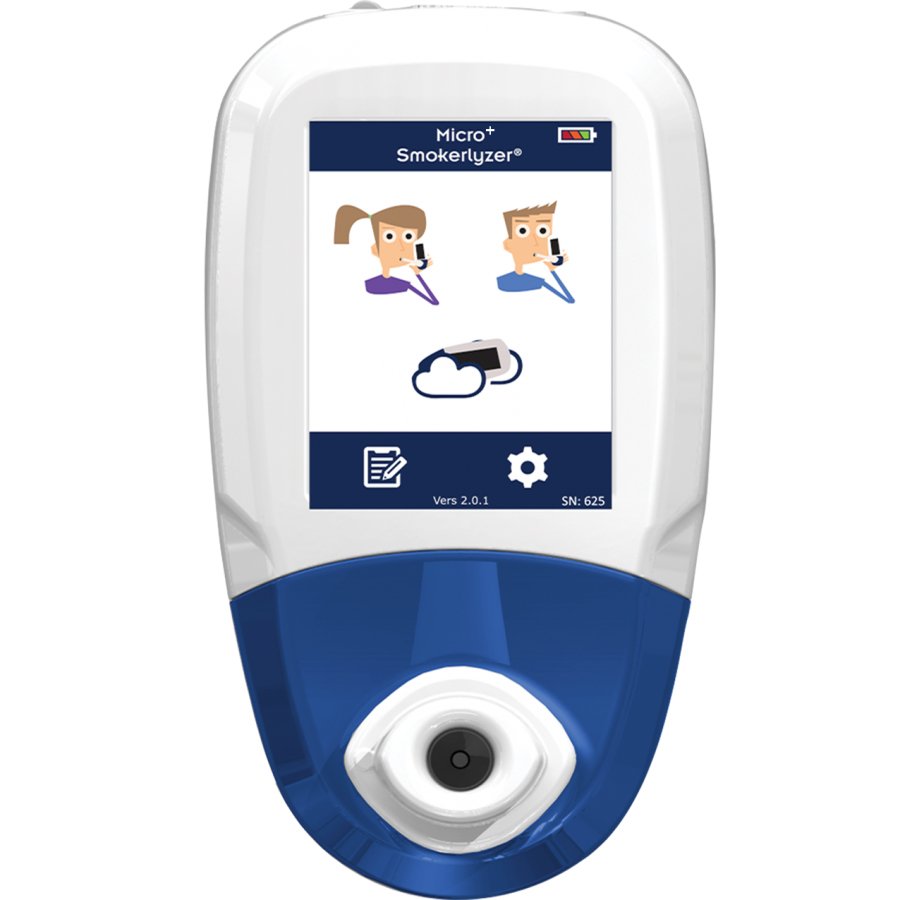

Bedfont New Micro Smokerlyzer

Rating:
% of
SKU:
BT-MICRO-INTERMED
MPN:
MICRO
£258.00 £215.00
-
+


Handheld, advanced portable breath CO monitoring with ambient air mode. Large touchscreen display with PC connectivity.

The Micro+TM Smokerlyzer® is a breath carbon monoxide monitor with advanced functionality built in making it ideal for all round use in breath and ambient air CO monitoring. This monitor features three selectable modes for testing on adults, adolescents and pregnant women. Ambient air mode can also be selected for testing levels of CO in the surrounding environment.

The Micro+ operates using a large touchscreen colour display with an easy to use interface. User data can be inputted (and stored) directly onto the device. Performing a test easy with easy to follow on-screen prompts for when the user needs to inhale, exhale and when to stop. Depending on the test mode selected, the device measures carbon monoxide levels (ppm), carboxyhaemoglobin (%COHb) and foetal carboxyhaemoglobin (%FCOHb) in a breath sample. Results are displayed in seconds showing ppm, %COHb and %FCOHb values as well as the familiar green, amber and red traffic light system providing the user with a visual interpretation of results. Interpretation ranges (the ppm levels set to define a green, amber or red status) can be adjusted in the settings to be more suited to certain users of the device.

The Micro+TM can also be connected to a PC via USB cable using the free COdata+ software. The software allows inputting of patient data, capture of readings whilst the device is connected to the PC, downloading of results stored on the device, comprehensive reporting and more. It also works with the “Pregnancy in Women” software allowing for real-time testing of pregnant women, with interpretation shown as a foetus glowing either green, yellow or red. (As seen on the BBC Three documentary "misbehaving mum's to be" aired in 2011)

The device is calibration-free complete with a 5-year manufacturer’s warranty. Verification gas and kits are available to check the status of the monitor if required.

The device uses a re-usable, multi-patient d-piece combined with Bedfont’s patent pending Steribreath® single-use mouthpieces. Steribreath® mouthpieces are available in boxes of 250 and are individually sealed for optimal infection control.


KEY FEATURES

  • Three selectable test modes
    Adult, adolescents and pregnant women
  • Ambient air mode
    Test levels of CO in surrounding ambient air
  • Touchscreen operation
    Easy to use with clear colour graphics
  • One touch testing
    Easy to follow prompts on-screen
  • Traffic light results indicator
    Visual way to easily interpret test results using the familiar green, red and amber traffic light system
  • Adjustable interpretation ranges
    ppm levels can be adjusted to how interpretation is defined on the traffic light system
  • Memory storage on device
    Store up to 10 patients and up to 100 tests
  • USB connectivity to PC Software
    Use COdata+ and “Pregnancy in Women” software for real-time testing and downloading of test data.
  • Excellent infection control
    Built with SteriTouch®, bacteria is killed on contact minimising infection risk.
  • 5-Year warranty
    Manufacturer’s warranty for added peace of mind

Available on NHS Supply Chain FDE85001

Technical Specification

Brand - Bedfont
Detailed Technical Information -
  • Concentration range: 0-500ppm
  • Display: Full colour touchscreen
  • Detection principle: Electrochemical sensor
  • Repeatability: ≤±5%
  • Accuracy ≤±2ppm/5% - whichever is greater
  • Power: 3 x AA (LR6 or equivalent) - up to 1000 minutes; 1 x CR2032 Lithium coin cell
  • T90 response time <30 seconds
  • Operating temperature: 15-40°C
  • Storage/transport temperature: 0-50°C
  • Operating/storage/transport pressure: Atmospheric ±10%
  • Operating humidity: 15-90% RH (non-condensing)
  • Storage/transport humidity: 0-95% RH (non-condensing)
  • Sensor operating life: 5 years
  • Sensor sensitivity: 1ppm
  • Sensor drift <5% per annum
  • Dimensions Approx. 37 x 77 x 140mm
  • Weight Approx. 215g (including batteries)
  • Materials Case: polycarbonate/ABS blend with SteriTouch® anti-microbial additive; D-piece™: polypropylene; SteriBreath™: polypropylene
  • H2 cross sensitivity ≤6%
