In Stock

A&D TM-2657P Waiting Room Blood Pressure Monitor

0% of 100
Was: £2,154.00
Special Offer:
£1,482.00 £1,235.00
Special Offer

Special offer includes metal stand and patient stool

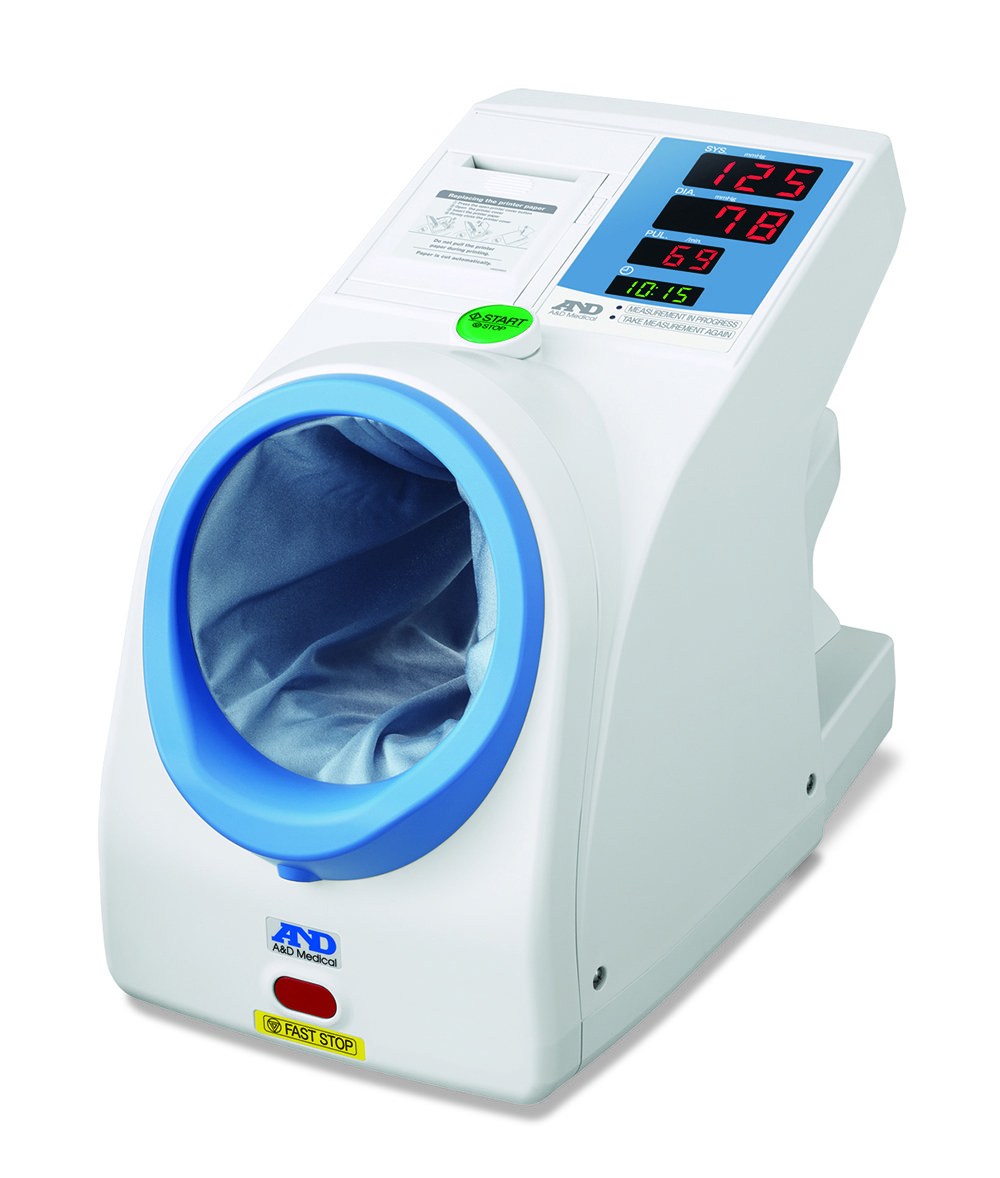

The TM-2657P is the latest model in the range of A&D freestanding fully automatic blood pressure monitors.

A&D first launched the Waiting Room monitor over 10 years ago, and it is widely used in pharmacies, hospitals and GP surgeries. It is estimated that it is used in over 1 in every 7 GP surgeries across the UK.

The reason for the popularity of the TM-2657P is because it enables patients to ‘self-screen’ and take their own blood pressure readings (and weight using a connected Medical Scale). This saves valuable clinical staff time, and therefore cost. It also allows clinical staff to see more patients, and to focus on the patients that most need help.

Where a practice has over 3,500 patients a waiting room monitor should be considered to help optimise patient screening. Once installed, the return on investment is often less than 6 months.

Building on the reputation of the previous models, the TM-2657P provides fast and accurate measurement, with its compact profile, it is extremely easy to use, and is very durable.

The TM-2657P also offers a diverse range of connectivity options – helping to expand market potential in various locations and areas of everyday life such as hospitals, medical clinics, health check-ups, corporate wellness, pharmacy services, and fitness centres.

The monitor benefits from extremely accurate Oscillometric BP measurement, first developed and patented by A&D back in 1984.

It also boasts A&D’s IHB (Irregular HeartBeat Indicator), pioneered by A&D in 2001 and now found on our entire range of blood pressure monitors. This A&D ground breaking technology is now used worldwide assisting in the opportunistic detection of arrhythmias – which include Afib (or Atrial Fibrillation).

The “Torque Controlled Belt drive Method” (TCBM) cuff fastening technology is an accurate, durable and reliable oscillometric measurement of blood pressure on the upper arm relies on the correct cuff/bladder dimensions and pressure applied.

TCBM holds the upper arm perfectly with a personalized cuff circumference, the same measurement preparation carried out by clinical nurses.

Key Features

  • Designed for ‘high foot fall’ areas to save time and money
  • Return on Investment normally within 6 months
  • User-friendly small footprint & barrier-free design
  • Simple to use, one-touch measurement
  • “Torque Controlled Belt drive Method” (TCBM)
  • Antibacterial arm cuff cover (included as standard) reduces the risk of cross infection
  • Reliable high speed printer with easy paper replacement
  • Irregular Heart Beat (IHB) indicator
  • BHS A/A Clinically Validated

Included in the package

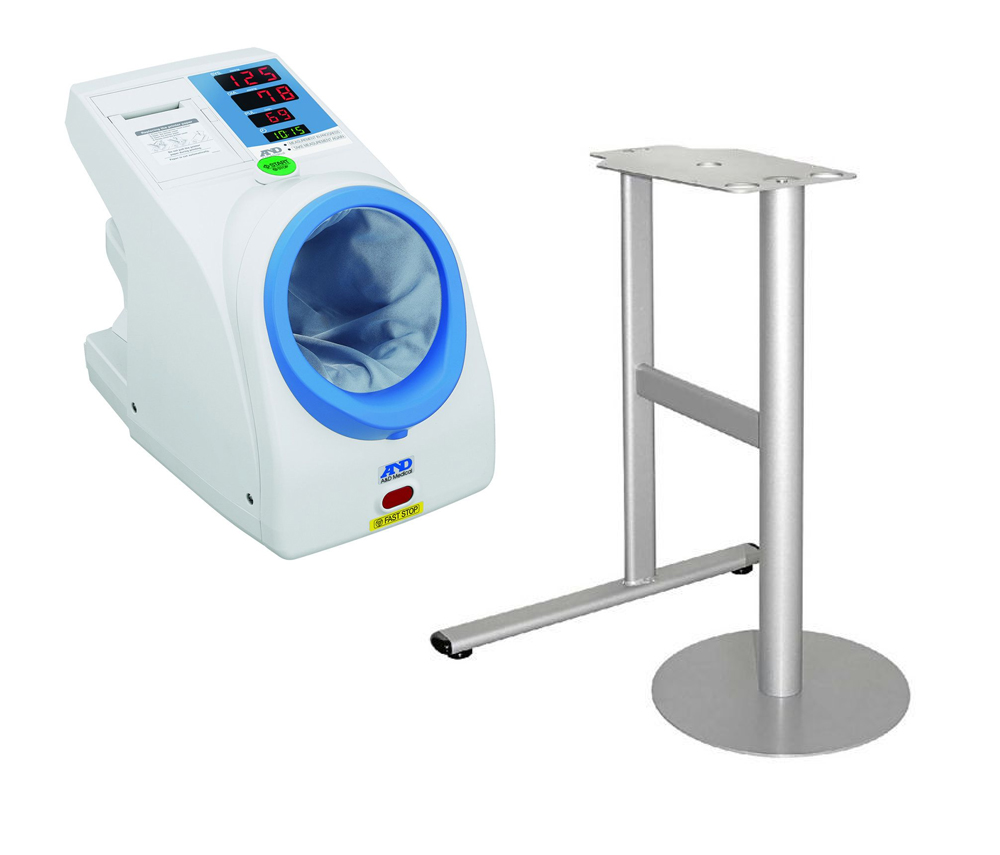

  • A&D waiting room monitor metal stand
  • Patient Stool
  • 5 rolls of paper
  • UK mains lead
  • Patient display card
  • 2 year warranty

Technical Specification

Brand - A&D Medical
Warranty - 1 Year
Detailed Technical Information -
  • Measurement Method: Oscillometric
  • AC power supply unit: Switching 100-240V AC 50-60Hz
  • Protection against electrical shock: Class I, Type B
  • Pressure display range: 0-299 mmHg
  • NIBP measurement range: SYS 40-270 mmHg, DIA 20-200 mmHg, Pulse 30-240 bpm
  • Measurement accuracy: Pressure: ±3 mmHg, Pulse: ±5%
  • NIBP clinical test: BS EN1060-4:2004, BHS:1993, +/-5mmHg SD:8mmHg
  • Cuff fastening method: Torque Controlled Belt drive Method (TCBM)
  • External dimensions: 241(W) x 324(H) x 390(D) mm (9.5(W) x 13.0(H) x 15.4(D) inches)
  • Weight: Approx. 5.5 kg (12.1 lb)
  • Applicable arm circumference: 7 inches (18.0 cm) to 13.8 inches (35.0 cm)
  • Cuff size: 125 x 300 mm (4.9 x 11.8 inches)
  • Display Type: 3-digit display by LED
  • Systolic (SYS), Diastolic (DIA), Pulse rate (PUL):
  • Counting function: Display of number of measurements to date: up to 999,999 times
  • Applied pressure: Automatic inflation by air pump
  • Pressure detection method: Capacitance type pressure transducer
  • Operating conditions: Temperature: 10-40 °C, humidity: 30-85% RH, no condensing
  • Transport/Storage conditions: Temperature: -20-60 °C, humidity: 10-95% RH, no condensing
  • Safety device (Electrical): Quick release when START/STOP button is pressed
  • Safety device (Electrical): Quick release when FAST STOP button is pressed
  • Clock Function: Clock Display, Date & Time (2015-2050)
