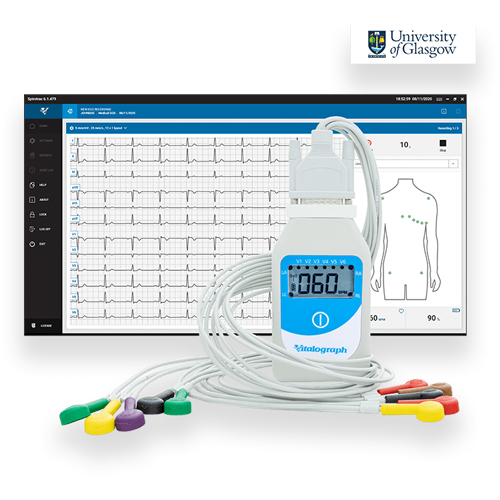

Vitalograph BT12 ECG with Spirotrac 6 software
Vitalograph 12 Lead Bluetooth ECG with Spirotrac 6 Software
The Vitalograph BT12 ECG combined with our Spirotrac® software is a powerful electrocardiograph. Free 5-Year Warranty with unlimited technical support if registered within 30-days of purchase. Includes FREE online device training with certificate.
- With its lightweight compact design, it is ideal as both a stationary and portable device providing 12-Lead Resting ECG instantly on your own PC, laptop or tablet.
- Transmission of the ECG trace is wireless with no leads to trip over, providing excellent signal quality, less artifact and ensuring minimal patient discomfort.
- Intuitive Spirotrac PC software provides a user friendly workflow.
- Accurate and sensitive interpretation is provided by the scientifically recognized University of Glasgow algorithm which is one of the top resting ECG interpretive algorithms in the world, tried and tested for more than 35 years.
- Can be used with both Spirotrac V and Spirotrac 6 software (software not included).
- Included as standard is Vitalograph Connect middleware software for connecting to all major EHR/EMR systems via HL7 and GDT.
Also available as a stand alone device without Spirotrac 6 Software CLICK HERE
The BT12 ECG comes with:

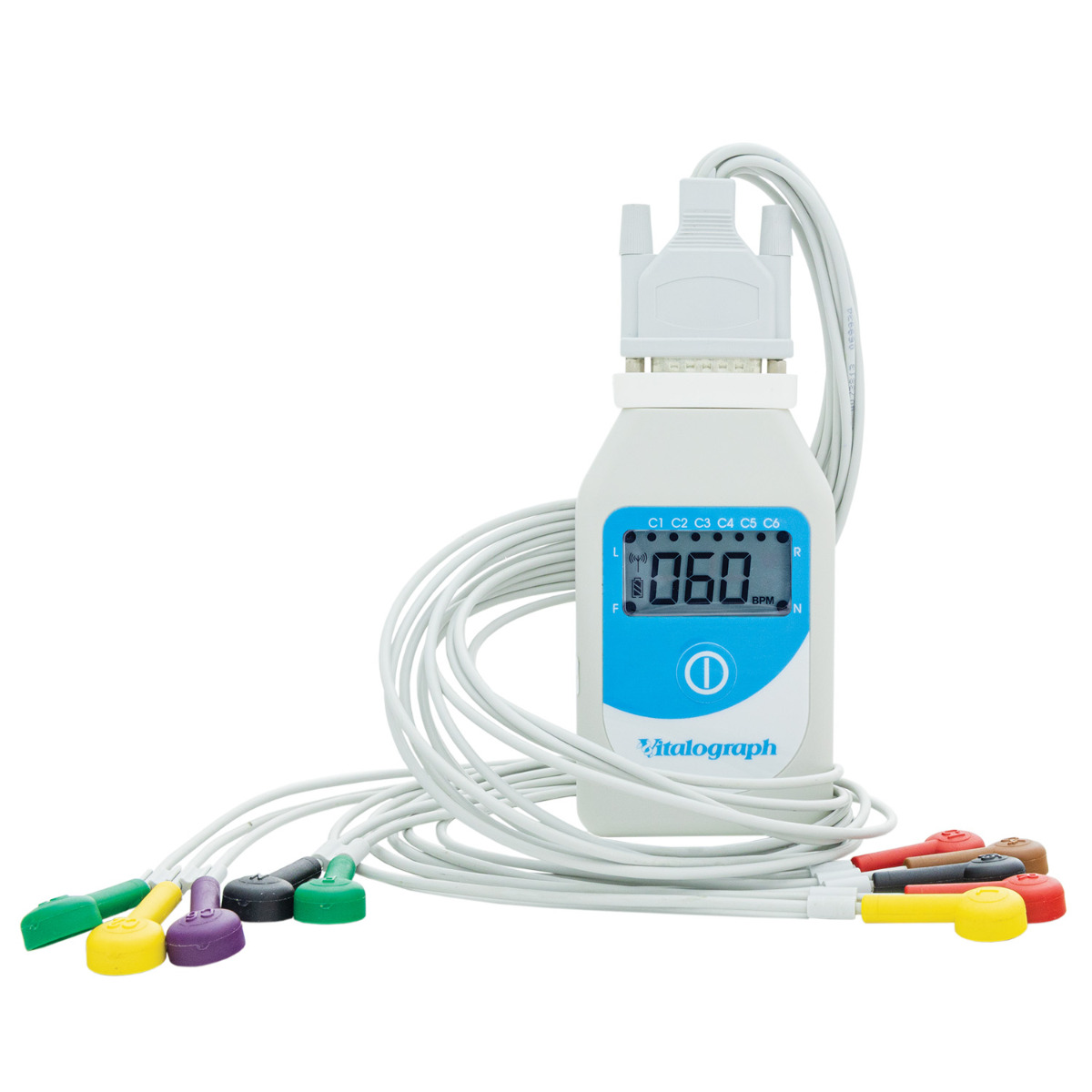

- 12-Lead Resting ECG Measuring Unit
- Electrode Cables
- Batteries
- Bluetooth Dongle
Introducing the BT12 ECG
Capabilities
- Fast & easy real-time traces with Bluetooth transmission for high quality ECG signal.
- Instant visual feedback for the operator on electrode contact problems, battery status and communication status.
- Save time by automatically transferring patient information and test data into EMRs avoiding copying and scanning reports.
- Quick 10 second test option for immediate results.
- Automatic pacemaker detection.
- Automatic measurements with high quality interpretation and analysis to support a reliable diagnosis.
- Calculation of heart rate with acoustic and visual signal to aid assessment.
- High quality multi-channel and 12-lead overview for viewing and printing, supporting multiple formats to suit user requirements.
Technical Specification
Brand - Vitalograph
Detailed Technical Information -
| Dimensions W x H x D | 6.1cm x 10.6cm x 2.3cm |
|---|---|
| Weight, incl. cable | 210 g incl. batteries (154 g without batteries) |
| Lead Configuration | IEC lead labelling |
| Power Supply | 2 AA batteries (1.5 V) or rechargeable batteries (1.2 V) |
| Data Transmission | Wireless, standard Bluetooth 2.1 |
| Electrodes | Standard clip ECG electrodes |
| Parameters (Spirotrac Software) | HR[/min] Heart Rate RR[ms] R-R interval P[ms] Duration of the P wave PQ[ms] Duration of the PQ interval ST[ms] Duration of the ST segment PR[ms] Duration of the PR interval QRS[ms] Duration of the QRS complex QT[ms] Q-T interval QTc[ms] Q-T interval, corrected by the heart rate with options Fridericia, Framingham, Bazett and Hodges |
| Signal Monitoring | Missing signal / connection termination Electrode loss |
| Sample Rate | 500Hz |
| Digital Resolution | 2.6 μV |
.
