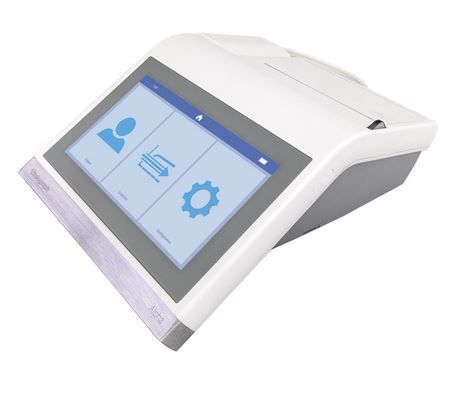

Vitalograph Alpha Spirometer

Designed for testing on the go, remotely or in a clinic, the Alpha is our ultimate desktop spirometry solution.

The new Alpha encompasses compliance with the ATS/ERS 2019 spirometry guidelines, multiple testing options, quick loading integrated thermal printer and direct links to Vitalograph Device Studio to generate PDF reports. Vitalograph Connect provides versatile connectivity to your electronic medical records via via HL-7 and GDT, taking spirometry testing to the next level. Features a 7” high-resolution touch-screen and a redesigned intuitive user friendly interface.

Free 5-Year Warranty with unlimited technical support if registered within 30-days of purchase.

Includes FREE online device training with certificate.

The Alpha Spirometer comes with:

Vitalograph Device Studio
Vitalograph Connect
USB cable
Ethernet cable
Medically approved power supply with country specific plug
Carry case

Capabilities

Meets 2019 ATS/ERS standardization of spirometry update.
Supports full feature Spirometry Testing and Bronchodilator Responsiveness Testing with over 50 available parameters.
Utilising proven, highly accurate, robust, and stable flow measuring technology.
Fast integral thermal printer – No PC required.
Lowest running costs & environmentally friendly: no need for costly disposable sensors, turbines, spirettes or flow tubes.
Save time & money on cleaning using Vitalograph BVFs with validated cross-contamination efficiency >99.999%, protecting the device, patient, and operator.
Instant quality feedback using the latest test/session acceptability, usability and repeatability criteria.
Automatic interpretation based on ATS/ERS & GOLD standards.
Ensure accurate results with quick and easy calibration verification routines recommended by 2019 ATS/ERS spirometry guidelines.
Fast evaluation of results using latest GLI spirometry predicted equations with LLN, %Pred and Z-scores. Other predicted equations are selectable.
Direct connectivity with Vitalograph Device Studio to generate PDF reports and receive the latest firmware updates.
Share test data easily with compatible Electronic Health Records (EHR) and Electronic Medical Records (EMR) systems through HL7, GDT.

Technical Specification

Brand - Vitalograph

Detailed Technical Information -

Flow Detection Principal	Fleisch flow technology
Essential Performance Test Limits	Flow accuracy ±10% or ±20 L/min, whichever is greater
Volume Detection	Flow integration sampling @ 100Hz
Maximum Displayed Volume	10L
Volume Accuracy	Better than ±2.5%
Voltage/Frequency	Power supply: Input 100-240V, 50/60Hz, Output 12V, 1.5A, Battery: 7.2V, 2.2Ahr
Performance Standards met or exceeded by Vitalograph Alpha	ATS/ERS 2019, ISO 23747:2015 & ISO26782:2009
QA/GMP Standards	EN ISO 13485, FDA 21 CFR 820, SOR/98-282 & JPAL, MDSAP
Dimensions	204mm (length) x 253mm (width)
Weight	1.5kg
Power Supply	12V, 1.5A DC power supply 7.2V, 2.2AHr NiMH battery

Delivery

This is usually a stock item - Please allow 1 to 3 working days delivery

In most cases, items in stock that are ordered before 12 noon are delivered on a next working day service.

If you need this item urgently please use the live chat or call us to enquire about our premium rate delivery service including same-day, timed and weekend deliveries. For more information about delivery, please visit our delivery information page here

Reviews

Configurable Content

Does the Alpha require cleaning?

Where a new BVF is used for each subject, only the flowhead surface which comes into contact with subjects being tested should require low level cleaning. For cleaning instructions refer to our Alpha Cleaning Instructions.

How do I decontaminate the Alpha flowhead?

The interior of a flowhead does not require decontamination where a new BVF is used for each subject. However, if there is a possibility of contamination, it is possible to decontaminate the flowhead following our Alpha Cleaning Instructions.

Do I need to perform calibration verification of the Alpha every day?

You have the ability to perform a simple calibration verification routine prior to undertaking testing, in accordance with international spirometry standards and guidelines (ATS/ERS).

What testing parameters are available on the device?

VC Test: VC, EVC, IVC, TV, IRV, ERV, IC
FVC Test: VC, FVC, FIVC, FIVC/FVC, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV1, FEV1R, FEV1/VC, FEV1/EVC, FEV1/IVC, FEV1/FVC, FEV1/FIVC, FEV1/FEV6, FEV1/PEF, FEV3, FEV3/VC, FEV3/FVC, FEV6, PEF L/s, PEF L/min, FEF25, FEF50, FEF75, FEF0.2-1.2, FEF25-75, FEF25-75/FVC, FEF75-85, FIV1, FIV1/FVC, FIV1/FIVC, PIF L/s, PIF L/min, FIF25, FIF50, FIF75, FIF50-FEF50, FEF50-FIF50, MVVind, FMFT, FET, FRC, TV, RV, TLC, IRV, ERV, IC, Rind, ELA, tPEF, Text, EV, EV/FVC.

What are the running costs for the Alpha?

Running costs are low for the Alpha as no expensive disposable sensors, adaptors or flow tubes are required. The simple, validated hygiene system using Bacterial Viral Filters means that keeping the device clean is easy and inexpensive.

The Alpha comes with 2 spare rolls of thermal printer paper. Replacements are available in packs of 10 rolls.
